P4 Double-sided full color indoor display
System Specific parameters as follows:
NO.
|
Item
|
Description
|
Remark
|
1
|
Pixel pitch
|
4mm
|
|
2
|
Pixel density
|
62500 dot/m2
|
|
3
|
Pixel composition
|
1R1G1B
|
SMD3528 3in1 encapsulation
|
4
|
LED Brand
|
Shilan chip
|
|
5
|
Screen Resolution
|
640 × 128
|
81920LEDs
|
6
|
Net Display Size
|
2560mm×512mmx200mm
|
1.311 M2 (Single-sided)
2.622 M2
(Double-sided)
|
7
|
Display
area
|
Double-sided
display
|
|
9
|
Module Resolution
|
64dot ×32dot
|
256mm×128mm
|
10
|
Scanning mode
|
1/16 Constant
flow source drive
|
|
11
|
View Angle
|
≥120°
|
|
12
|
Lifespan
|
≥100000 hours
|
|
13
|
Scotoma rate
|
≤0.0003
|
|
14
|
Control system
|
Full-color
synchronous control system
|
Requires the user
to provide a dedicated control computer
|
15
|
Communication
cable
|
1pcs Unshielded Twisted Pair
|
maximum transmission
distance 100 meters
|
16
|
Brightness
Control
|
32 level adjustable
by software
|
|
17
|
Screen outer
frame
|
Powder coating metal
plate Simple installation cabinet
|
|
18
|
Display content
|
Can display all
kinds of information: including text, images, animation, tables, database and
video image, etc. Optional color, font size is adjustable, can be arbitrary
partition, varied display models
|
|
19
|
Screen body description
|
1)
Made
by cold rolled galvanized steel，Panel thickness : 1.5mm
2)
phosphate
coated Rust-proof treatment，grey color spraying plastics on surface；
3)
Reserved
installation site on the cabinet
4)
Around
with cooling fans
5)
Assembly
way: Adopt magnetic steel column to fix unit modules , front
access easy maintenance
|
|
20
|
Price
|
US$6***.00/set
|
Including control
system, software etc
|

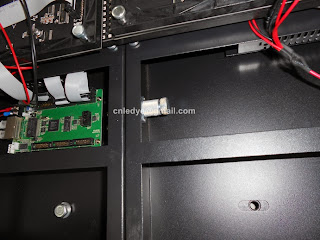

Photo for reference:

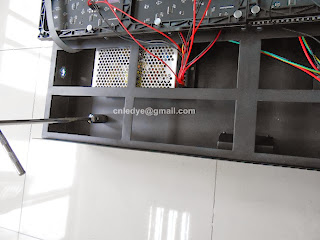

Magnetic Steel
columns:

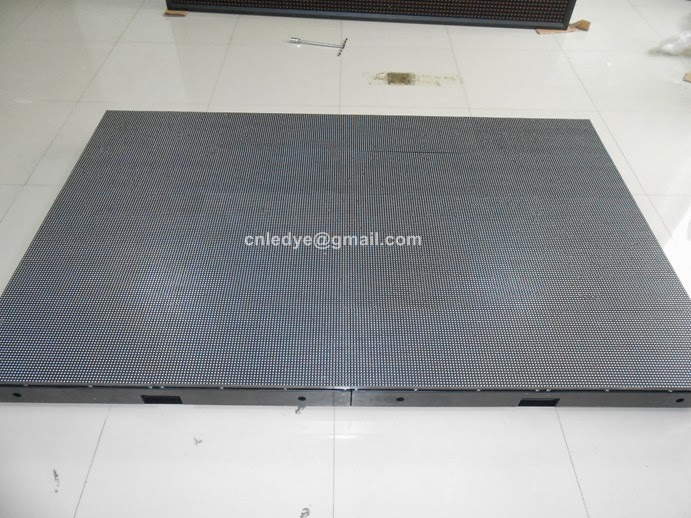

SMD Full Color Indoor Screen:
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
