Get correct communication with 40Cross

Get correct communication with Cross by RS232 Cable (Monochrome 40cm)

1. RS232 Cable for SH-40cross, use to connect the cross with PC (Notebook)

 2. RS232 Port on the Cross

 3. This is our Notebook with RS232 Converter

4. Connect the RS232 with the Converter, and the Notebook



5. Then we open our cross edit software (below is a sample with our Spanish software)

   5.01Set Cross resolution and Baud rate. 40 Cross,
   Resolution: 48 × 48 (pixel)
   Baud rate: 9600 (bps)

5.02. Set Cross address(Search Cross)

    Each Cross is set and supplied with one exclusive ADDRESS. The address is an 8-digit code which is composed of numbers (0~9) and capital letters (A~F). It is usually printed on a label sticked inside the   control box of Cross and on the label which is sticked on the outside package of Cross.

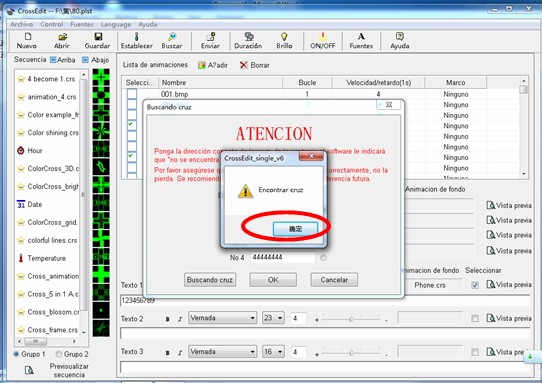

6. At this stage, if all the setting is correct, the software gets the correct communication and will say “Find cross!”

7. As soon as the software finds the Cross, user can already send messages to the Cross.
